NHBC Wimborne

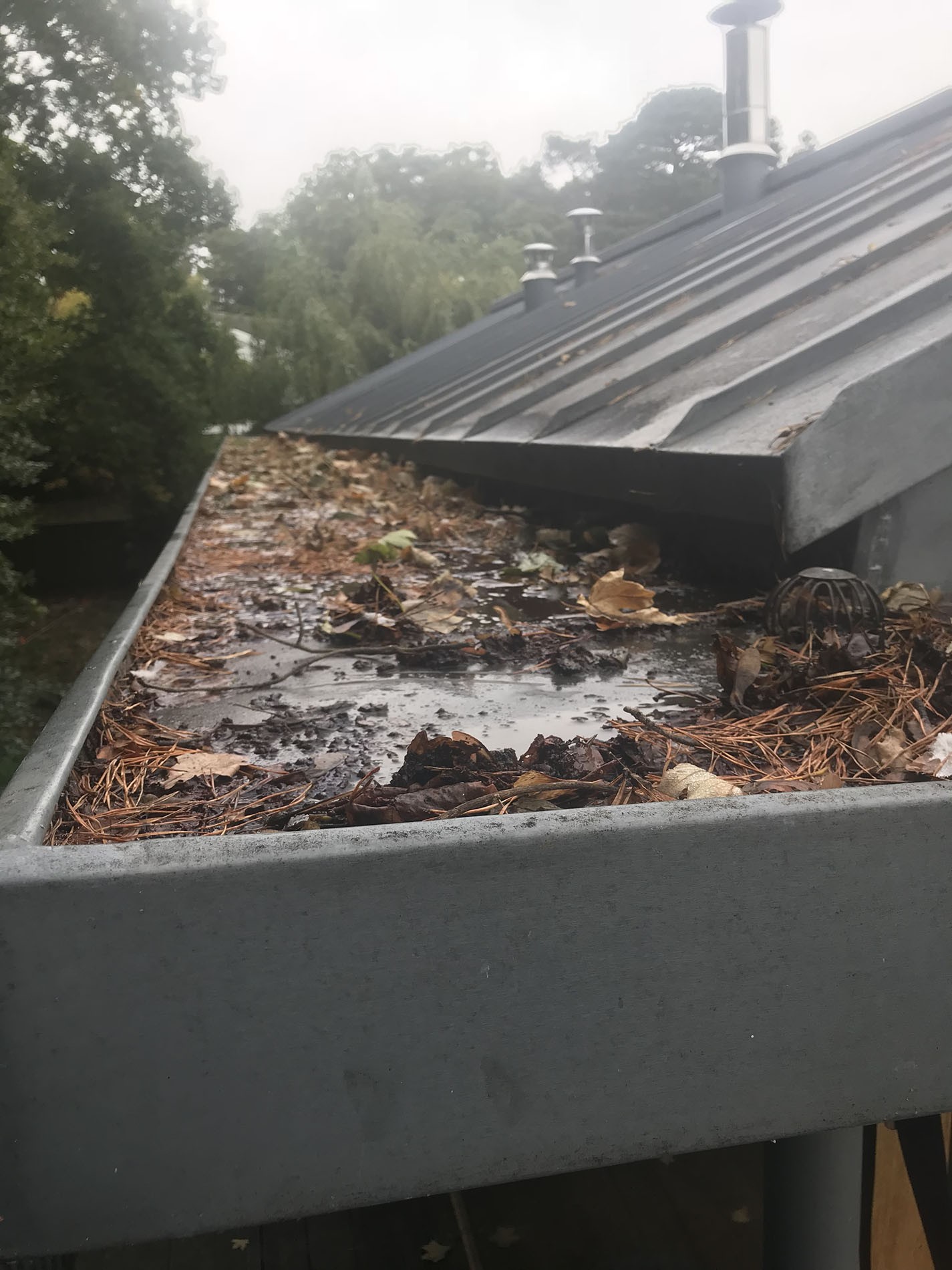

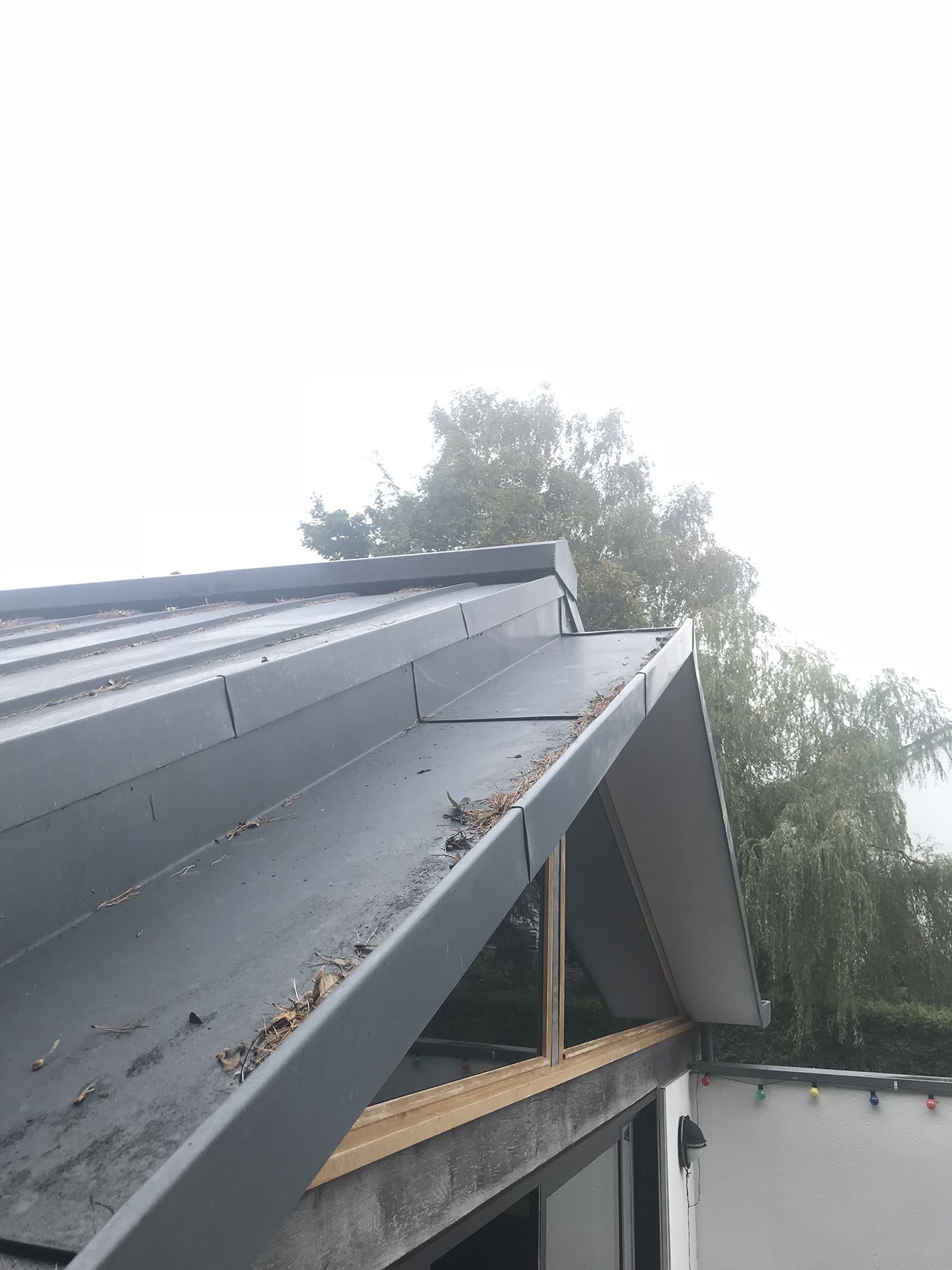

County Gutters were contacted by the technical department of the NHBC, they had an architect designed oak framed building in Wimborne with serious water ingress problems. The design of the building incorporated a 600mm wide zinc lined gutter, the gutter ran along each side, continuing up and over the eaves, the gutter sat on a 50mm plywood base, this was supported by oak cross beams that ran through the building, due to movement in the oak through settlement, the gutter was not flowing correctly, water entered the building every time it rained.
The main challenge of this project was to match the architectural features of the zinc roof and capping’s without removing the roof, the NHBC contacted us to find a solution.

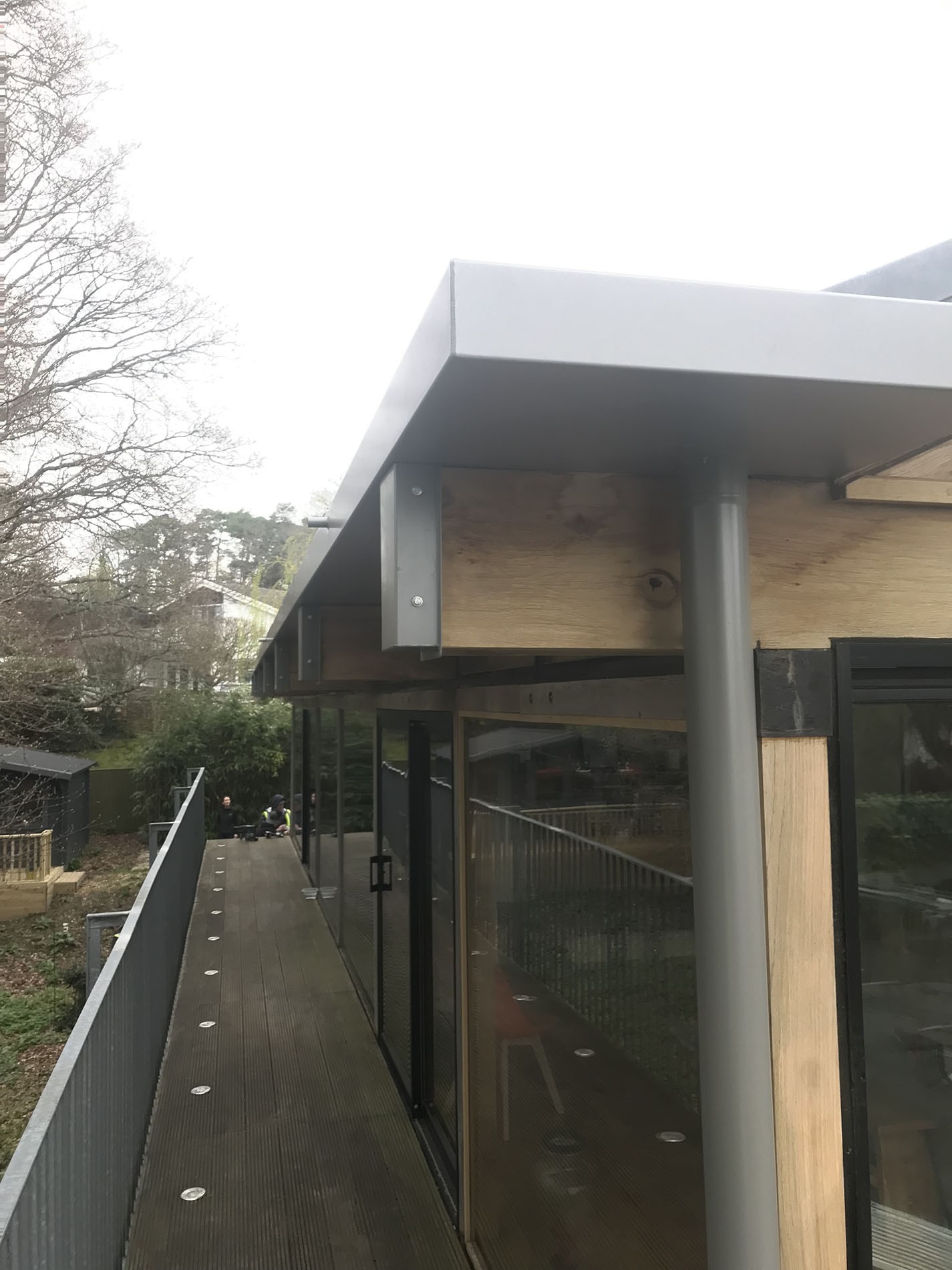

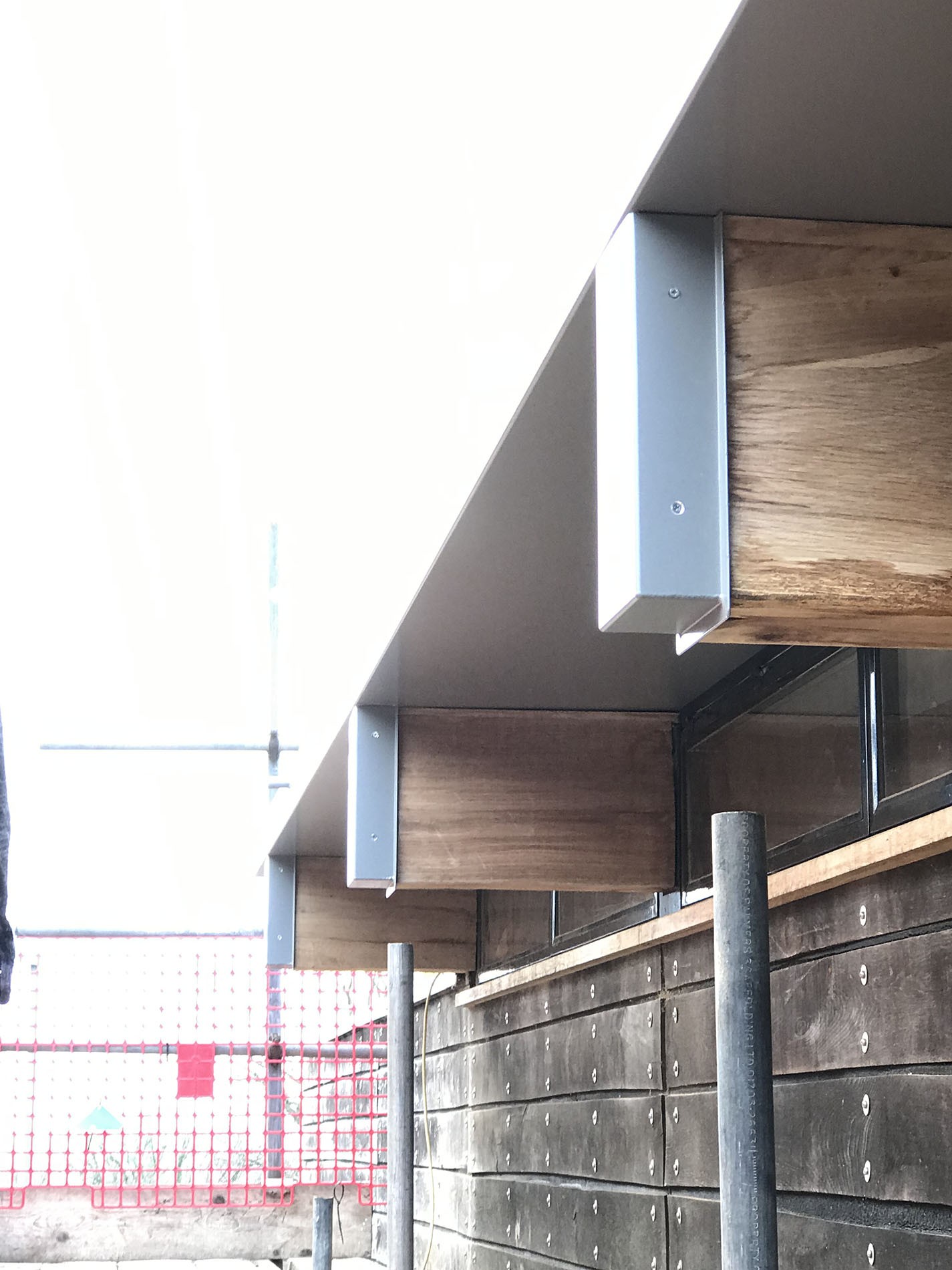

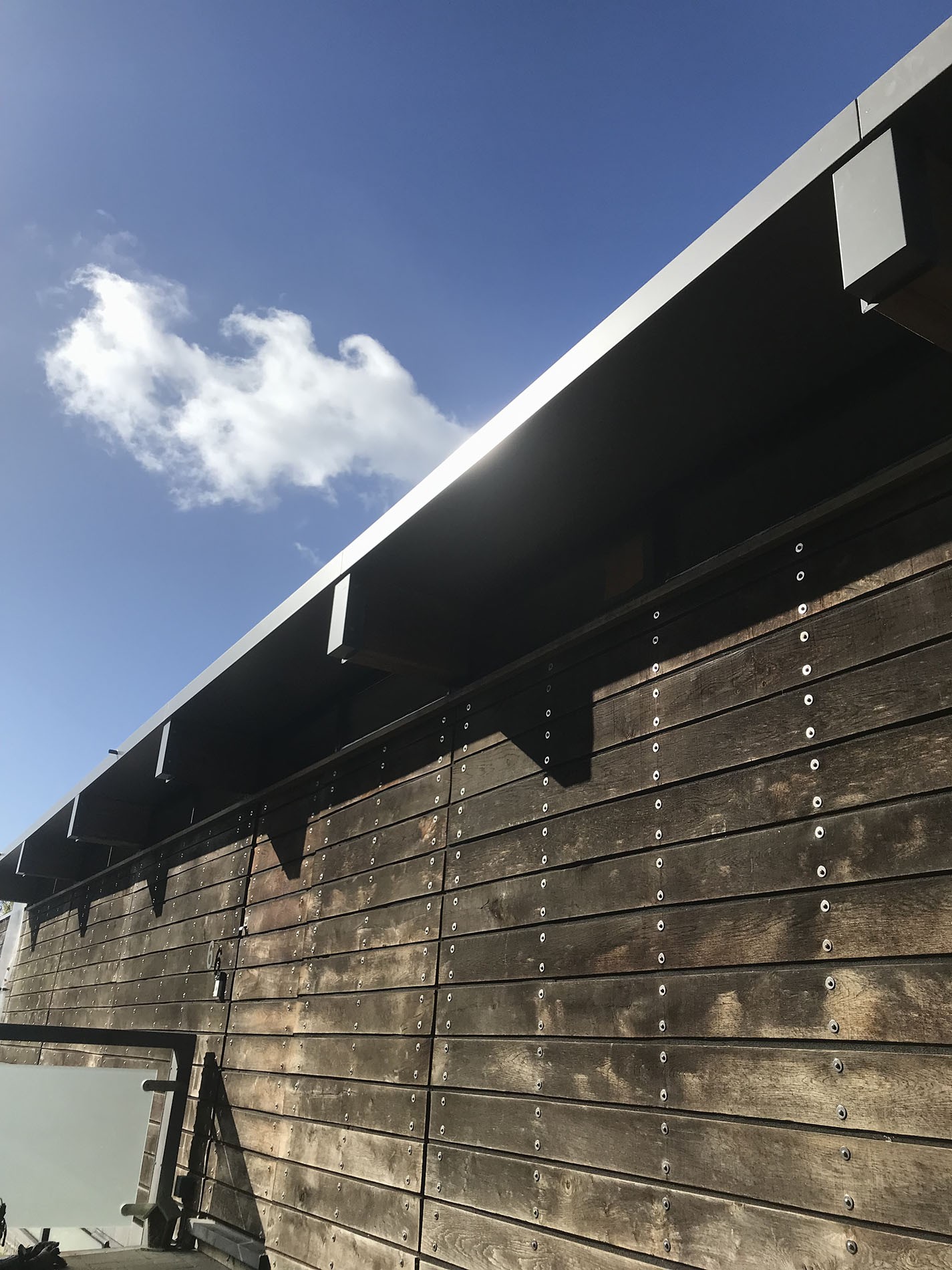

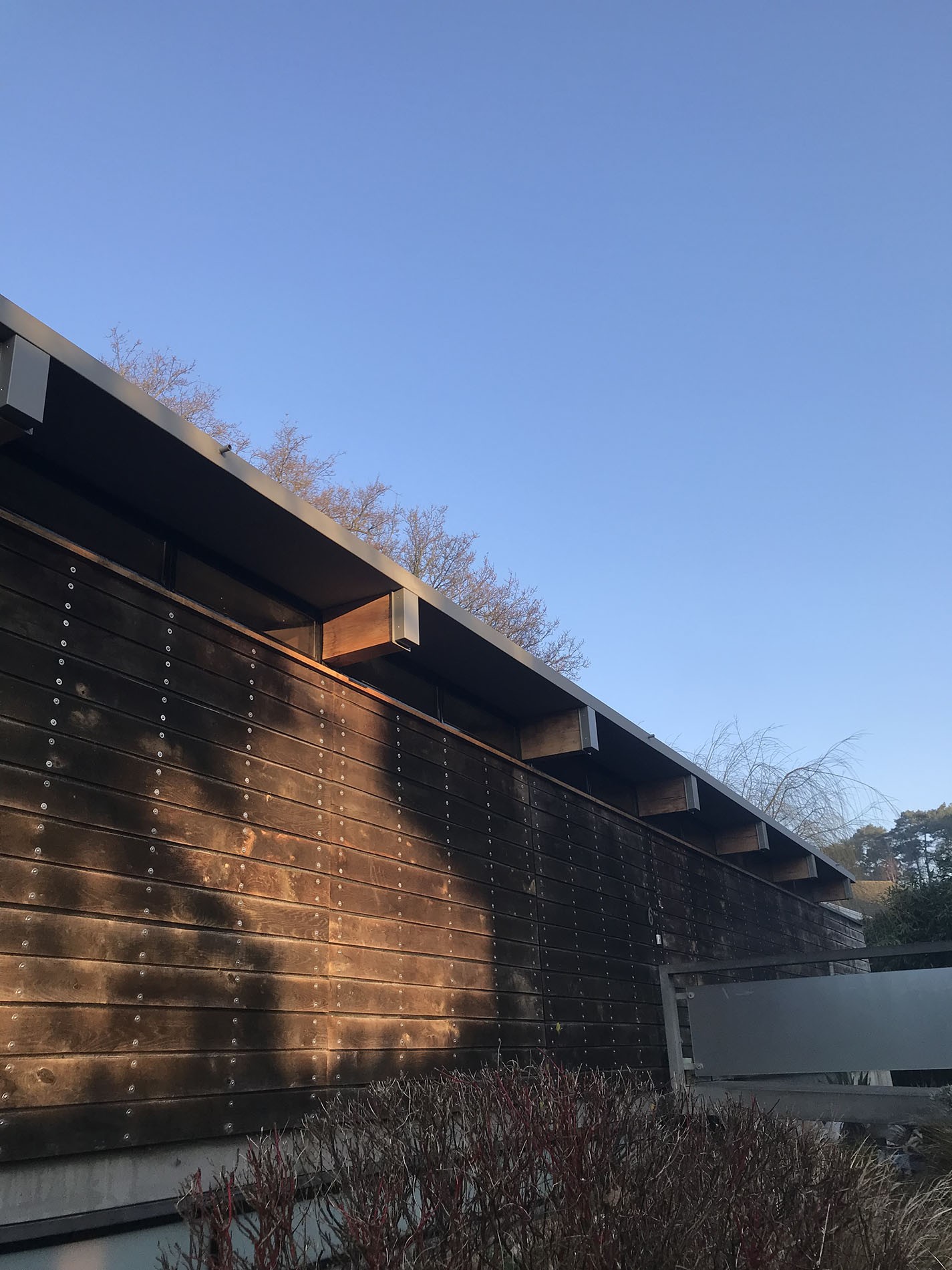

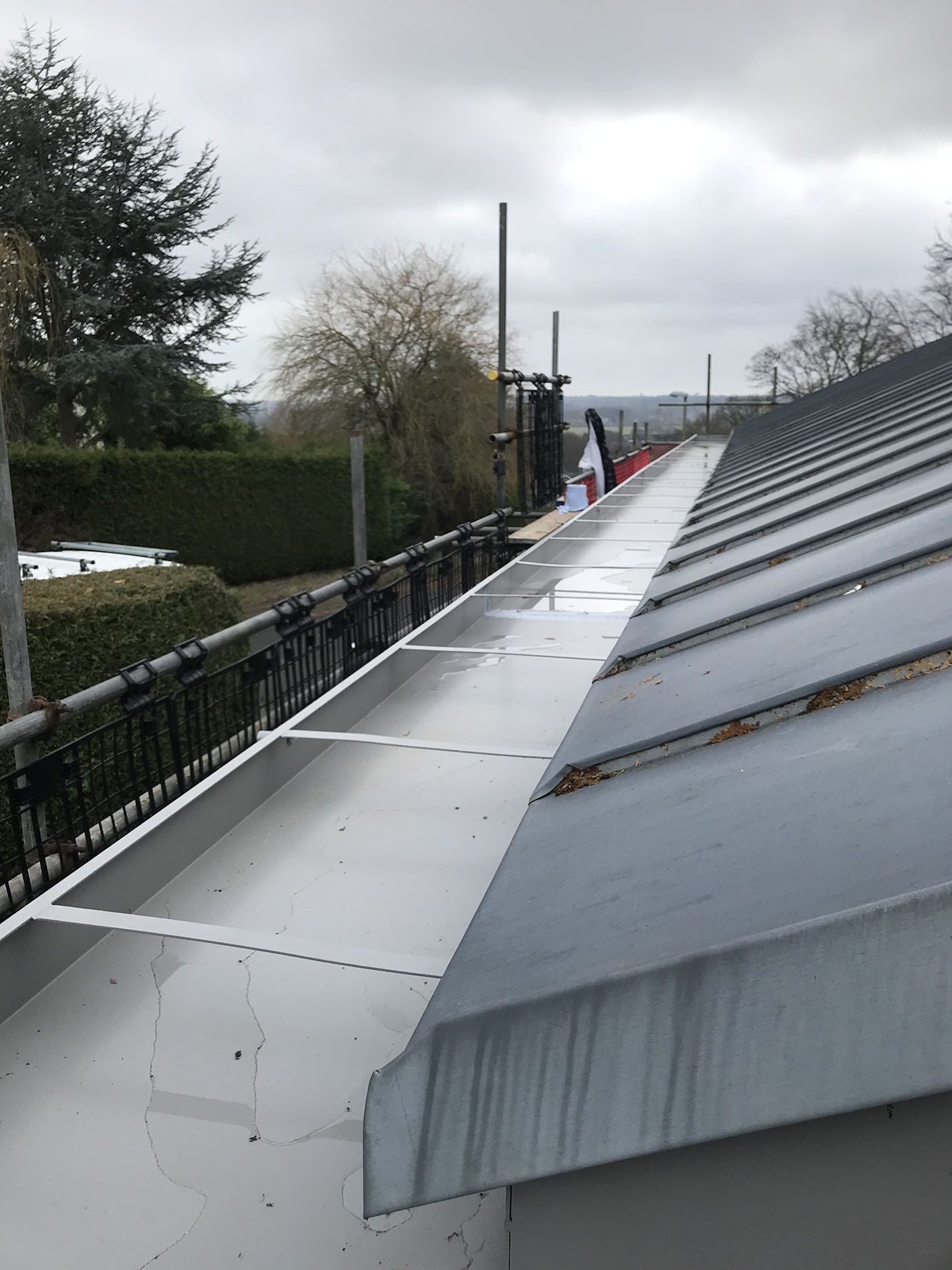

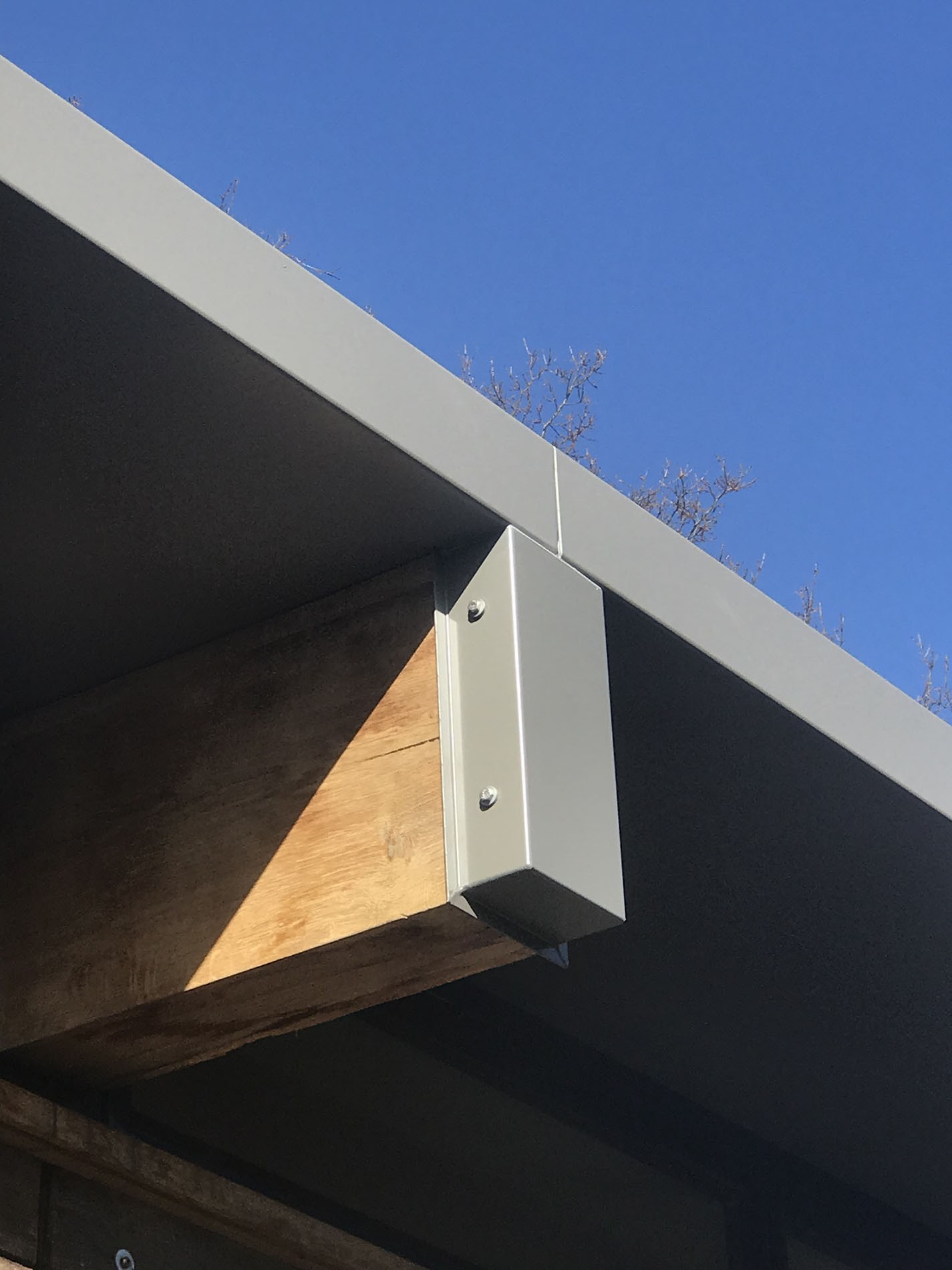

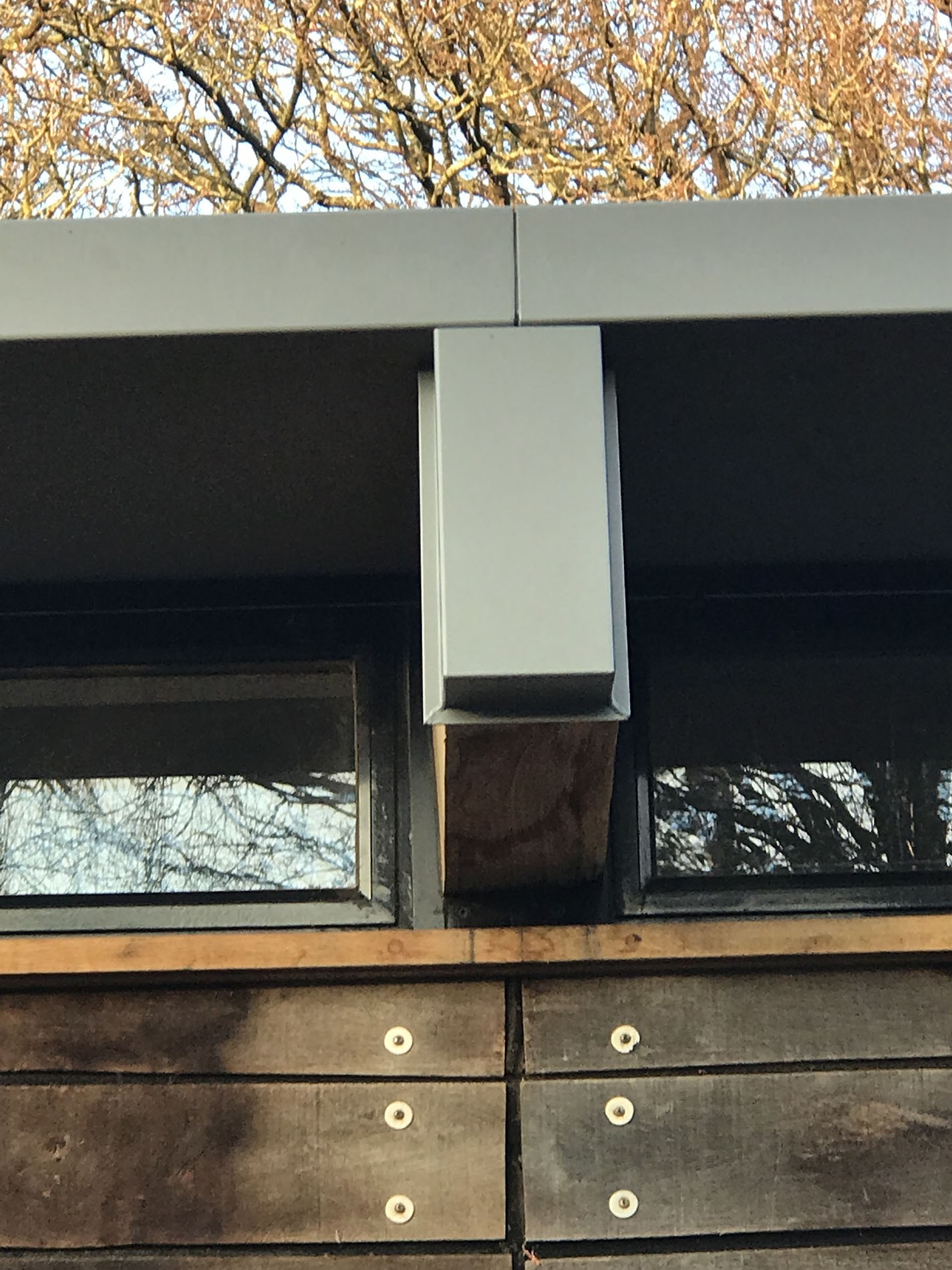

After much discussion and many site visits a design was forwarded and accepted, the new gutter was designed with a larger water capacity while still being able to vent the cold roof, the 50mm plywood was removed and the powder coated gutter was installed, supporting itself on the oak cross beams, water chutes were also incorporated into the gutter as a belt and bracers approach.
The materials consisted of Legion bespoke box gutter with Colonnade rainwater pipes, all the aluminium was coated in RAL 9007 metallic Grey.
Location
- Wimborne, Dorset
Products
- Legion bespoke box gutter
- Colonnade rainwater pipes
Colours
- RAL 9007 metallic Grey
Related Services
NHBC Wimborne Water Ingress Solution
The new design for the guttering system was specifically tailored to address the movement in the oak beams and the need for improved water flow. By removing the problematic 50mm plywood base, the new system was able to function more effectively, ensuring that water was properly directed away from the building and preventing any further ingress. The use of Legion bespoke box gutters and Colonnade rainwater pipes, powder-coated in RAL 9007 metallic grey, helped maintain the aesthetic integrity of the building while also improving its water management capabilities. The system's larger water capacity and incorporation of water chutes provided a more reliable solution for the roof's drainage needs.
Through careful planning, design, and expert installation, County Gutters successfully resolved the water ingress issue without compromising the architectural elements of the oak-framed building. The new guttering system not only addressed the immediate concerns of water ingress but also ensured the long-term durability and functionality of the building's drainage. The collaboration between County Gutters and the NHBC team provided an efficient, aesthetically pleasing solution that preserved the integrity of the building while offering the reliability needed for years to come.
